Professional Connector Manufacturer
Product Details:
Payment & Shipping Terms:
|
| Type: | DIP | Gender: | Femalle |
|---|---|---|---|
| Business Type: | Manufacturer | Cotact Housing: | Gold Plated |
| Life: | 8000 Cycles Min | Application: | DVR Video Recorder |
| Highlight: | mini hdmi connector,hdmi plug connector |
||

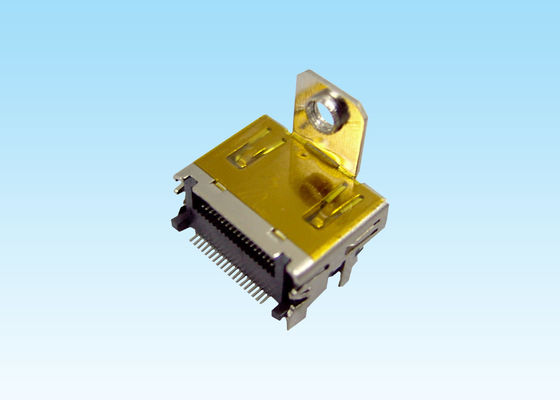

A-Type with Ear Dip Female HDMI Connectors 19 Pin used in DVR video recorder
Product details:
| Product name: | DALEE HDMI Cable Connector |
| Secification: | DIP |
| Type : | HDMI-A |
| Gender: | Female |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Pin: | 19 Pin |
| Rated voltage: | 40 V |
| Rated Current: | 0.5 A |
| Contact Resistance: | 10mΩ MAX |
| Insulation Resistance(unmated): | 100mΩ/MIN AT 500 VDC |
| Insulation Resistance(mated): | 10mΩ/MIN AT 150 VDC |
| Insertion Force: | 44.1 N/ MAX |
| Extroction Force: | 5 N/MIN, 25N/ MAX |
| Life : | 8000 Cycles min |
| Business Type: | Manufacturer |
| Application: | DVR video recorder |
HDMI Cable Connector Material :
1) Gold Plating:1u ,3u 6u 15u 30u 50u.
2) Shield Material: Copper Alloy preplated with Nickel.
3) Contact Mating Area Plating Material: Gold 6u/15u/30u/50u.
4) Storage Temperature: -20ºC to +85ºC.
5) Operating Temperature: -20ºC to +85ºC.
Dalee Connector Main Export Markets : Africa,Asia,South and North America and Europe and so on .
HDMI Connectors Application:
1) Automotive products
2) Computer notebook
3) Watch TV boxes
4) LAN Ethernet and network
5) Medical equipment
6) Rear DVR video recorder
Dalee Connector Advantages:
1, One stop service of connectors with high quality and best service after sales
2, Strict shipping ,100% tested before the delivery.
3, fast delivery,purchasing orders shipped in 3-10 days.
4, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
5, samples can be provided for free in 1-3 days
6, we also can provide the customized products as the request of clients.
All tests shall be performed as bellow conditions unless otherwise specified.
Temperature range : +15oC to +35oC
Humidity range: 25% to 85%
Atmospheric Pressure : 86kPa to 106 kPa (860 to 1060 mber)
Payment term and delivery:
1. MOQ:1000pcs.
2. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs
3. Trade Terms: FOB Shenzhen or EXW.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Payment term: 100% T/T in advance before production.
Frequently Asked Question:
Q1: How To Order?
A: 1,please tell us what model and quantity you need;
2, then we will make a PI for you to confirm the order details;
3, when we confirmed everything, can arrange the payment;
4, finally we deliver the goods within the stipulated time.
Q2: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q3: What’s your payment term?
A: We usually accept T/T as the main payment term, and other payments can also be negotiated
Q4: How to contact us?
A: Send your Inquiry Details in the Below, Click "Contact now" . Free sample and best answers are waiting for you.
